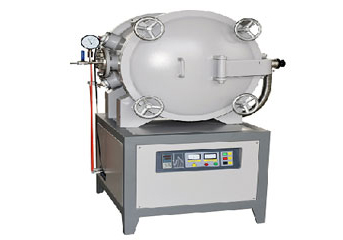

1700-Vacuum-Furnace

1700-Vacuum-Furnace

Vacuum hardening Vacuum brazing Vacuum annealing Vacuum magnetize. vacuum tempering Vacuum sintering Vacuum carburizing Vacuum nitriding.Atmosphere sintering Reducing atmosphere Vacuum diffusion welding etc.

Key Features

  • Highly automated control
  • New type chamber lining material
  • Process using grinding mouth cavity seal sealing interface is stable and reliable
  • Low power consumption, energy saving and pro-environment
Product +model Chamber size(mm) Product model Chamber size (mm) Max. temp. Working temp.
TI-V1700-1L 100×100×100 KJ-V1700-27L 300×300×300 1650oC 1600oC
TI-V1700-1.9L 120×120×130 KJ-V1700-36L 300×300×400 1650oC 1600oC
TI-V1700-3.4L 150×150×150 KJ-V1700-61L 350×350×500 1650oC 1600oC
TI-V1700-4.5L 150×150×200 KJ-V1700-64L 400×400×400 1650oC 1600oC
TI-V1700-8L 200×200×200 KJ-V1700-125L 500×500×500 1650oC 1600oC
TI-V1700-12L 200×200×300 KJ-V1700-216L 600×600×600 1650oC 1600oC
TI-V1700-19L 250×250×300 KJ-V1700-512L 800×800×800 1650oC 1600oC
