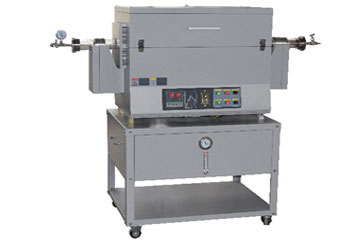

Three zone 1600 CVD System
Battery material Drying of powder material Vacuum sintering Sintering of atmosphere protective Vacuum coating All kinds material sintering,All kinds CVD experiments under 1300℃
Battery material Drying of powder material Vacuum sintering Sintering of atmosphere protective Vacuum coating All kinds material sintering,All kinds CVD experiments under 1300℃
| Model | TI-O1300-120IR | Tilt angle | 0～30°Adjustable |
| Heating zone | Ф120×600mm | Gas rods | 1 rod Rotameter |
| Tube diameter | Two sides 60mm，Middel 120mm | Atmosphere | Nitrogen, argon, oxygen and inert gas |
| Tube length | 1400mm | Total voltage | 6.5KW |
| Working temp. | 1300OC（Corundum tube ） | Power supply | AC:220V 50/60Hz |
| Temp. Control accuracy | ±1 OC | Tube material | Quartz and corundum |
| Heating elements | Silicon carbide | Furnace height | 1400mm |
| Temp. Testing elements | S type thermocouple | Furnace width | 1160mm |
| Control mode | PID control | Furnace depth | 700 |
| Rotary type | Adjustable | Others | Customized with other needs |
