PFX Sensor

Space Saving with thickness 3.5mm!
Ultra small size!
5 Kind of sensors are lined up!

PFX Series Sensors

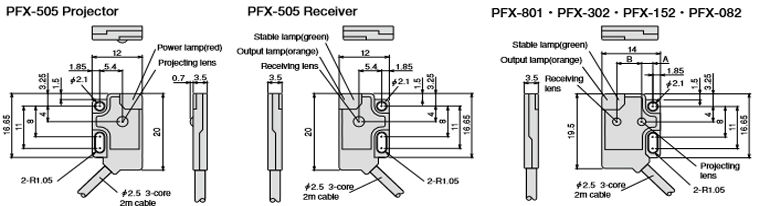

  • Thickness is 3.5mm and it is possible to install at the too narrow space.
  • Stable lamp (green LED) and output lamp (orange LED) provides and it is easy to see them from the back side and to check when optical axis adjustment.
  • Easy to make a wiring because cable from the sensor is tilting.
  • High speed response 0.5msec.
  • Waterproof structure IP67.
