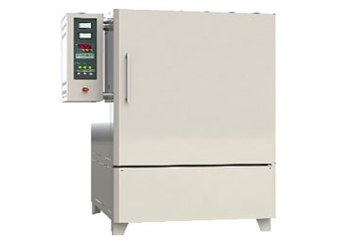

1700-Muffle-Furnace

1700-Muffle-Furnace

High-temperature sintering in colleges and universities, research institutes, industrial and mining enterprises. Metal annealing, new materials development, organic matter ashing, quality testing purposes, but also for military, fire, electronics, pharmaceuticals, specialty materials and other production and experimentation.

Key Features

  • Furnace chamber is suitable for mass production
  • Three surface heating makes its layout more reasonable and its temperature field more inform
  • Adopting solid state relay regulating control, high accuracy, low noise when working
Model Chamber size(mm) Max. temp. Working temp. Temp. accuracy
TI-M1700-8L 200×200×200 1650oC 1600oC ±1oC
TI-M1700-12L 200×200×300 1650oC 1600oC ±1oC
TI-M1700-27L 300×300×300 1650oC 1600oC ±1oC
TI-M1700-36L 300×300×400 1650oC 1600oC ±1oC
TI-M1700-64L 400×400×400 1650oC 1600oC ±1oC
TI-M1700-80L 400×400×500 1650oC 1600oC ±1oC
TI-M1700-125L 500×500×500 1650oC 1600oC ±1oC
TI-M1700-150L 500×500×600 1650oC 1600oC ±1oC
TI-M1700-216L 600×600×600 1650oC 1600oC ±1oC
TI-M1700-512L 800×800×800 1650oC 1600oC ±1oC
