Confocal Micro Raman Spectrometer

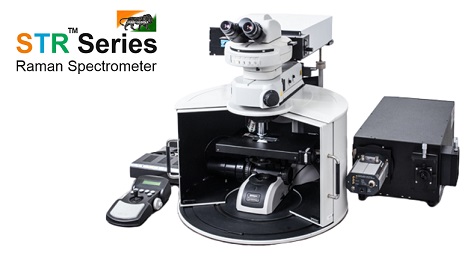

STR series Laser Raman Spectrometer is a new generation high resolution Raman Spectrometer with a high sensitivity to measure even a very weak Raman scattering from materials A basic system consists of a laser source, an imaging spectrometer, TE cooled CCD camera, an optical microscope with spatial resolution < 1µm and/or a remote Raman probe. Based on the application, one can choose single/multiple appropriate UV, Visible and Near IR excitation laser sources, which allows to scan a wide variety of samples including organic compound. User friendly, Windows based control and data processing software make the operation of the spectrometer very easy. Configuration of the spectrometer is based on modular approach that gives ample flexibility for integration with other analytical tools such as TEM, SEM, XRD and AFM.

High Resolution Confocal Micro Raman Spectrometer Specification

  • New generation optical fiber delivery
  • Modular approach and customization for advanced application
  • High Throughput (>70%) Photoluminescence / Raman Spectrograph
  • Spectral resolution of < 0.3 cm-1
  • Peltier cooled CCDs with QE varying from 40-95%.
  • Fully Automated 3D Raman Mapping Data Collection
  • Single spectrometer with focal lengths of 150 to 750 mm.
  • Measurement down to 10 cm-1
  • UV-Visible-NIR excitation sources.
  • Attachable to AFM(for TERS), SEM, XRD, TEM.
  • Confocal optics for Microscope and Remote Raman Probe
  • Detect and measure deposit in liquid as it is.
