Desktop X-ray Inspection System NFX-50

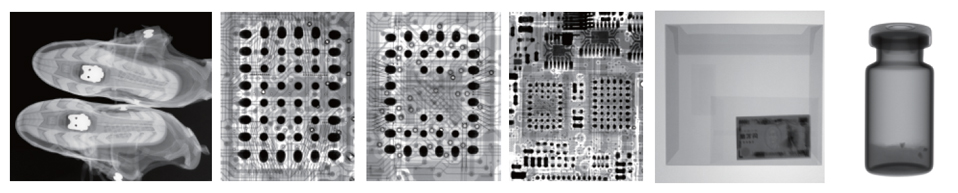

With planar image scanners and the manual placement mechanism, the exclusively patented technology of transmission X-ray from NanoRay can create images for analysis. All applications can be conducted by this model to evaluate and analyze. Because of its small size, this model is especially good for limited space.

Features & Specification

Wide angle can reduce the object distance. The maximal detection area is 145.4 x 114.9 mm.
It is small, portable and mobile to support all kinds of inspection in production lines.
Power consumption is low and regular power of AC110V is sufficient.
It is with high perspective image quality and high resolution.
Spot size of the X-ray tube is 30um in diameter.
It can save energy by over 75% compared to conventional X-ray inspection machines.
Nano Ray Biotech is the only manufacturer in Taiwan for transmission X-ray equipment.

Wide Angle characteristic can shorten irradiation object distance. Max. irradiation area: 145.4 x 114.9 mm
Low energy consumption : Domestic AC, Power Supply 110V
Save above 75% electricity consumption than conventional X-ray tube
Compact, portable, space-saving and flexible for detection supports on production lines
High transparent image quality and resolutions Small spot size: 30μm
The only transmission X-ray manufacturer in Taiwan
